Overview

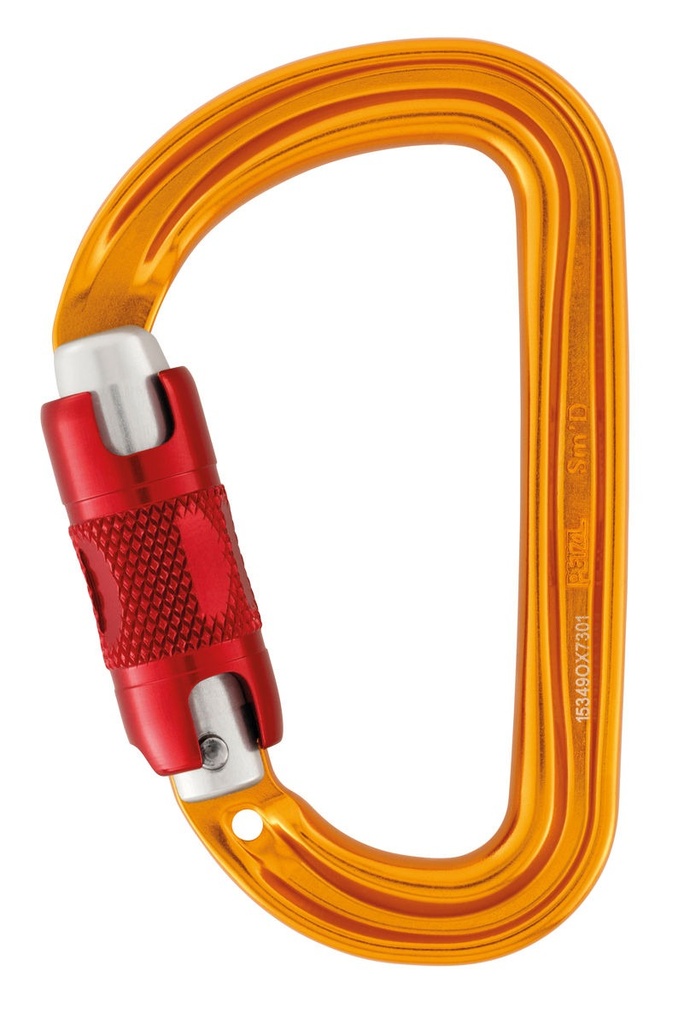

Sm’D is a D-shaped locking carabiner that is lightweight and compact and can be used in numerous situations; it is easy to use, even when wearing gloves, and is available in two locking system versions.
Features
- Highly versatile:
- D shape is functional for multiple uses, regardless of orientation: attaching a belay system, pulley, or connecting to the end of a lanyard
- Compact and very lightweight - Easy to use and ergonomic:
- D shape is easy to grip
- H-shaped frame provides better grip when wearing gloves
- Keylock system helps prevent the carabiner from snagging during use
- Hole allows a TIBLOC or a MICRO TRAXION to be connected to the carabiner with a cord, keeping the devices together - Available in two locking systems, each for different situations:
- SCREW-LOCK: easy-to-open system can be locked or not according to need; the red indicator provides a visual warning when the carabiner is unlocked; ideal for harsh environments where contaminants (mud, ice) could cause an automatic locking system to jam
- TWIST-LOCK: specific use when quick opening is key (e.g. at the end of a lanyard) and when connecting a GRIGRI to the harness
Specifications
- Material(s): Aluminum
- Certification(s): CE EN 12275, UIAA, CE EN 362, EAC, GB/T 23469 / B
References
| References | M39A SL | M39A RL |
|---|---|---|
| Weight | 46 g | 51 g |
| Locking system | SCREW-LOCK | TWIST-LOCK |
| Type | B | B |
| Color(s) | YELLOW | YELLOW |
| Major axis strength | 23 kN | 23 kN |
| Minor axis strength | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN |
| Gate opening | 20 mm | 20 mm |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
