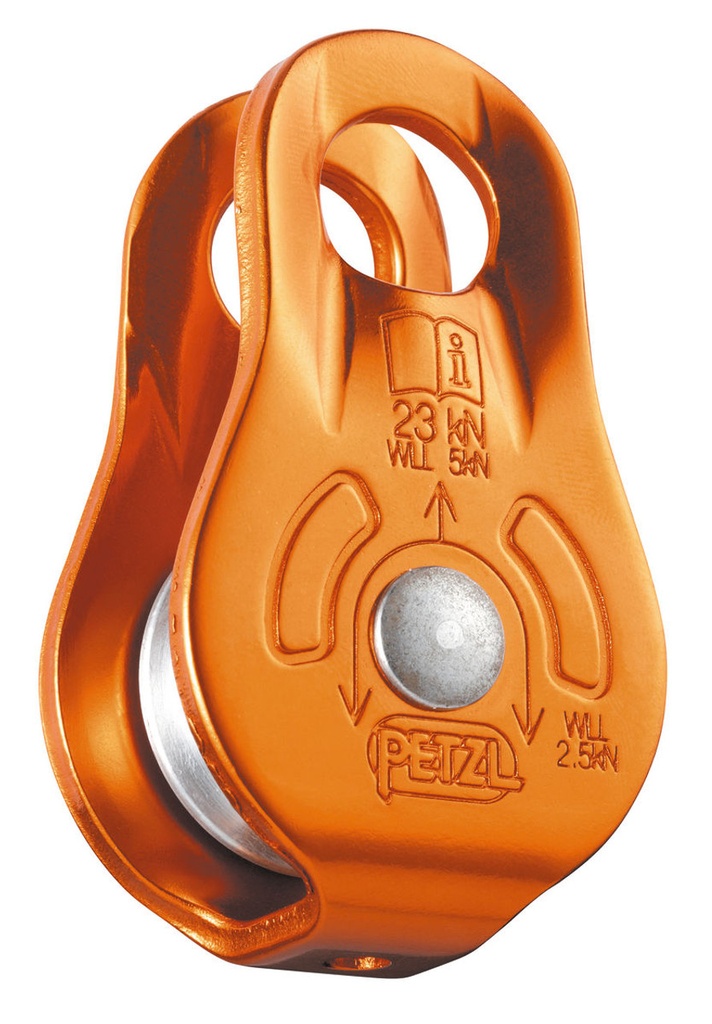

Versatile, compact pulley for quick installation onto the rope. The Fixe pulley is lightweight, compact, and quick to install on the rope. It offers a good balance between weight and strength.
• Lightweight, compact pulley
• Designed for hauling systems and deviations
• Fixed side plates allow quick installation and coupling with a rope clamp
• Sheave mounted on self-lubricating bushings for efficiency
• Material(s): aluminum side plates, aluminum sheave
• Certification(s): CE EN 12278, UIAA
• Weight: 90g
• Min. rope diameter: 7mm
• Max. rope diameter: 13mm
• Sheave type: self-lubricating bushings
• Sheave diameter: 21 mm
• Efficiency: 71%
• Working load: 5kN
• Working load: on one rope strand: 2.5 kN
• Breaking strength: 23kN
• Guarantee: 3 years
