Overview

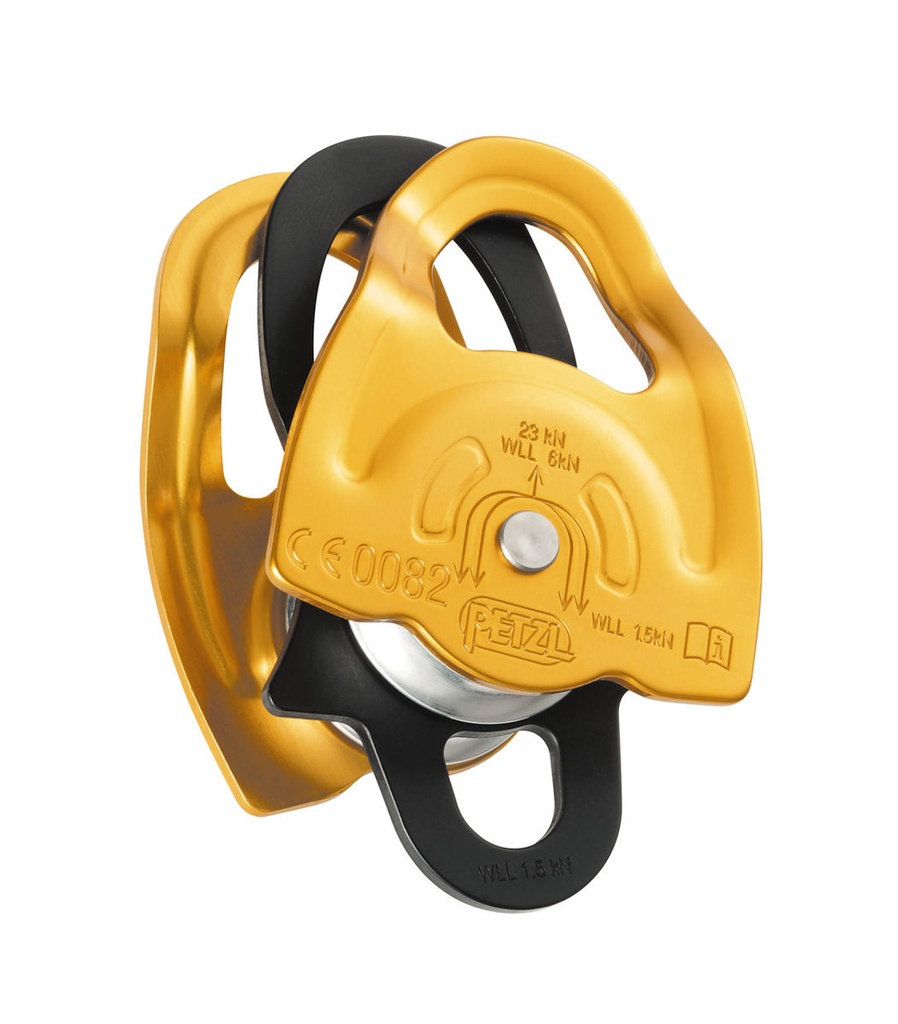

The GEMINI double pulley is equipped with an auxiliary attachment point for use in technical hauling systems.
Features
- Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
- Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems, including the most complex
- Sheave mounted on sealed ball bearings for excellent efficiency
- Lightweight (aluminum side plates and sheaves)
Specifications
- Material(s): aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UIAA, UKCA, NFPA 2500 Technical Use
| Weight | 135 g |
| Min. rope diameter | 7 mm |
| Max. rope diameter | 11 mm |
| Sheave diameter | 25 mm |
| Efficiency | 91 % |
| Breaking strength | 23 kN |
| Working load | 6 kN |
| Working load | on one rope strand: 1.5 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
